MNG-510 twin tower PSA Nitrogen Generator delivering 55.5 m3/h at 99.5% purity at reference conditions (inlet pressure 7.5 Bar and inlet temperatures between 10 & 25 Deg C).

Maximum inlet pressure of 10 Bar, Minimum Inlet Temperature of 5 Deg C and Maximum Inlet Temperature of 45 Deg C.

Mikropor's MNG Nitrogen Generators come complete with ;


  • Activated Carbon Tower
  • Buffer Tank
  • 2 x "P" Grade Filters 5 Micron (After Carbon Tower & After Buffer Tank)
  • N2 Generation Unit
  • Siemens HMI Colour Touch Screen PLC
  • Oxygen Sensor
  • Flow Sensor
  • Pressure Transmitter
Nitrogen Generator Specifications
N2 Generator Type Twin Tower
Air Inlet Connection 1 1/2"
N2 Outlet Connection 3/4"
N2 Flow at 99.5% Purity (m3/h) 55.5
N2 Flow at 99.999% Purity (m3/h) 10.9
N2 Buffer Tank Size 515 Ltr

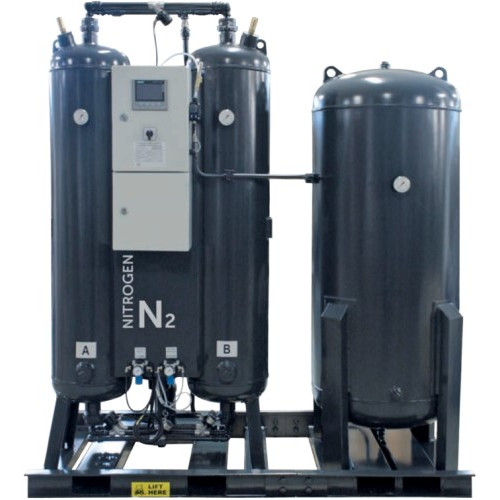

MNG-510 Twin Tower PSA Nitrogen Generator

  • Brand: Mikropor
  • Product Code: MNG-510
  • Availability: Manufactured to Order-Contact us
